TL;DR
- Azure ADでOpenID Connectの認証ができるか確認をした
- 確認環境は森岡がテスト用に作ったアプリケーション
- 上記環境はLocal環境で動いていて、Dockerで構成されている
- lua-resty-openidcを使ってnginxレイヤーだけで認証ができた
- まだ本番への反映をしていないので、完成度は30%くらい
- sessionが切れたときに、/login に強制的にredirectさせる方法
- dockerでない環境での反映手順も考えられていない
- Azure AD側にアプリケーションを登録しなければ使えないので、ある程度セキュアではなかろうか
Azure ADの設定
Azure AD側の設定は、基本的にAzure AD公式ドキュメントの方法に従う。
- Azure Potalにサインインする
- Azure Active Directoryからアプリの登録を行う
- サインオンURLの設定をする
- 今回はlocalで確認するので
http://127.0.0.1:8080
とした
- 今回はlocalで確認するので
- アプリケーションのプロパティから、アプリケーションIDを確認し控えておく
- 「キー」から鍵を作成して控えておく
- このアプリケーションにアクセス可能な人をAzure AD上で設定しておく

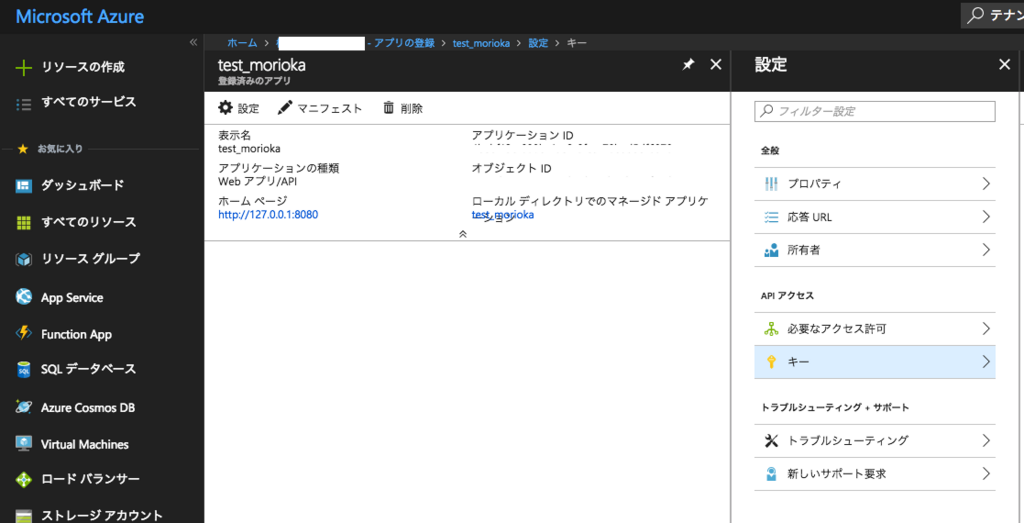

アプリの登録

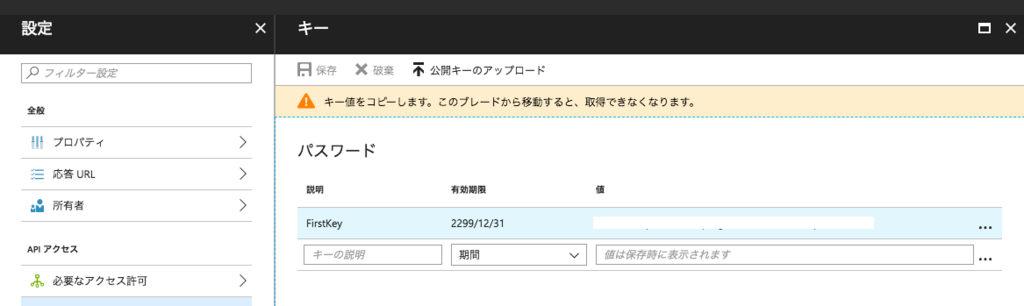

鍵の登録
実装
Docker Build
今回、サクッと確認するためにDockerで環境を構築。 nginxのlua pluginでOIDCができるやつがいたので、こいつを利用させて貰う。
FROM openresty/openresty:1.13.6.2-0-centos ADD conf.d/app.conf /etc/nginx/conf.d/app.conf ADD nginx.conf /usr/local/openresty/nginx/conf/nginx.conf ADD src /usr/local/openresty/nginx/src RUN opm install zmartzone/lua-resty-openidc CMD ["/usr/bin/openresty", "-g", "daemon off;"]
openrestyのdocker imageには、opm(openresty package manager)がデフォルトで入っているので、そのopmを使ってlua-resty-openidcをinstallすることができる。
証明書の設定
luaでsslを利用する際は、lua_ssl_trusted_certificate
ディレクティブに証明書の設定をする必要がある。この証明書だけれども、実はopenrestyのdocker imageの中にデフォルトで入っているので、今回はそれを利用する。
➜ pomodoro git:(master) ✗ docker exec -it pomodoro-web /bin/bash [root@bba9dae7baca /]# ls -al /etc/ssl/certs/ total 8 drwxr-xr-x 2 root root 4096 Apr 2 18:38 . drwxr-xr-x 5 root root 4096 Apr 2 18:38 .. lrwxrwxrwx 1 root root 49 Apr 2 18:38 ca-bundle.crt -> /etc/pki/ca-trust/extracted/pem/tls-ca-bundle.pem lrwxrwxrwx 1 root root 55 Apr 2 18:38 ca-bundle.trust.crt -> /etc/pki/ca-trust/extracted/openssl/ca-bundle.trust.crt
これをnginxの設定に記載して終了。実際のコードはここ を参照
Luaコードの設定
-- https://github.com/selmertsx/pomodoro/blob/master/docker/nginx/src/test.lua local opts = { redirect_uri_path = "/", discovery = os.getenv("DISCOVERY"), client_id = os.getenv("CLIENT_ID"), client_secret = os.getenv("CLIENT_SECRET"), } local res, err = require("resty.openidc").authenticate(opts) if err then ngx.status = 500 ngx.say(err) ngx.exit(ngx.HTTP_INTERNAL_SERVER_ERROR) end ngx.req.set_header("X-USER", res.id_token.sub)
環境変数の渡し方
discovery, client_id, client_secretはシークレットな情報なので環境変数で渡す。 nginxでは環境変数をluaに渡すためには、env directiveを利用する必要がある。
The NGINX environment variable is used internally by nginx and should not be set directly by the user.
公式ドキュメントには上記のように記載されているので、nginx.confの一番上でenv directiveを利用する。
worker_processes 1; env DISCOVERY; env CLIENT_ID; env CLIENT_SECRET; events { worker_connections 1024; }
なお CLIENT_IDやCLIENT_SECRETはAzure AD設定時に取得したアプリケーションIDや鍵を設定すれば良い。
環境変数DISCOVERYの設定
discovery urlの取得方法については、公式ドキュメントに記載されている通りであるが、少しばかりハマりポイントがあるので解説。ここだけはちゃんと読んでほしい。
https://login.microsoftonline.com/{tanent_name}/.well-known/openid-configuration
でアクセスし、tanent_idを取得https://login.microsoftonline.com/{tanent_id}/.well-known/openid-configuration
の文字列をnginxに設定する
上記設定の理由
ここは興味があれば見るくらいで良い。
まず前提として、Azure ADにおいて、Discoveryは下記2つのフォーマットで取得することができる
https://login.microsoftonline.com/{tanent_name}/.well-known/openid-configuration
https://login.microsoftonline.com/{tanent_id}/.well-known/openid-configuration
lua-resty-openidcを利用する場合、2番のフォーマットでDiscoveryを指定しなければならない。その理由は、lua-resty-openidcの実装上の問題である。上記ライブラリにおいて、openidcの認証は下記のような実装になっている。
-- https://github.com/zmartzone/lua-resty-openidc/blob/master/lib/resty/openidc.lua#L469-L509 ngx.log(ngx.DEBUG, "response data: "..res.body) json, err = openidc_parse_json_response(res) if json then if string.sub(url, 1, string.len(json['issuer'])) == json['issuer'] then openidc_cache_set("discovery", url, cjson.encode(json), exptime or 24 * 60 * 60) else err = "issuer field in Discovery data does not match URL" ngx.log(ngx.ERR, err) json = nil end end
DiscoveryのURLと、discovery urlから返されるissuerのURLの一部が一致しているか見ている。Discoveryから得られるissuerのURLは、https://sts.windows.net/{tanent_id}/
という値になる。そのため、tanent_nameでURLを指定すると一致しないという問題が起きる。よって、Discovery取得用のURLは、tanent_idで指定する必要がある。
認証結果

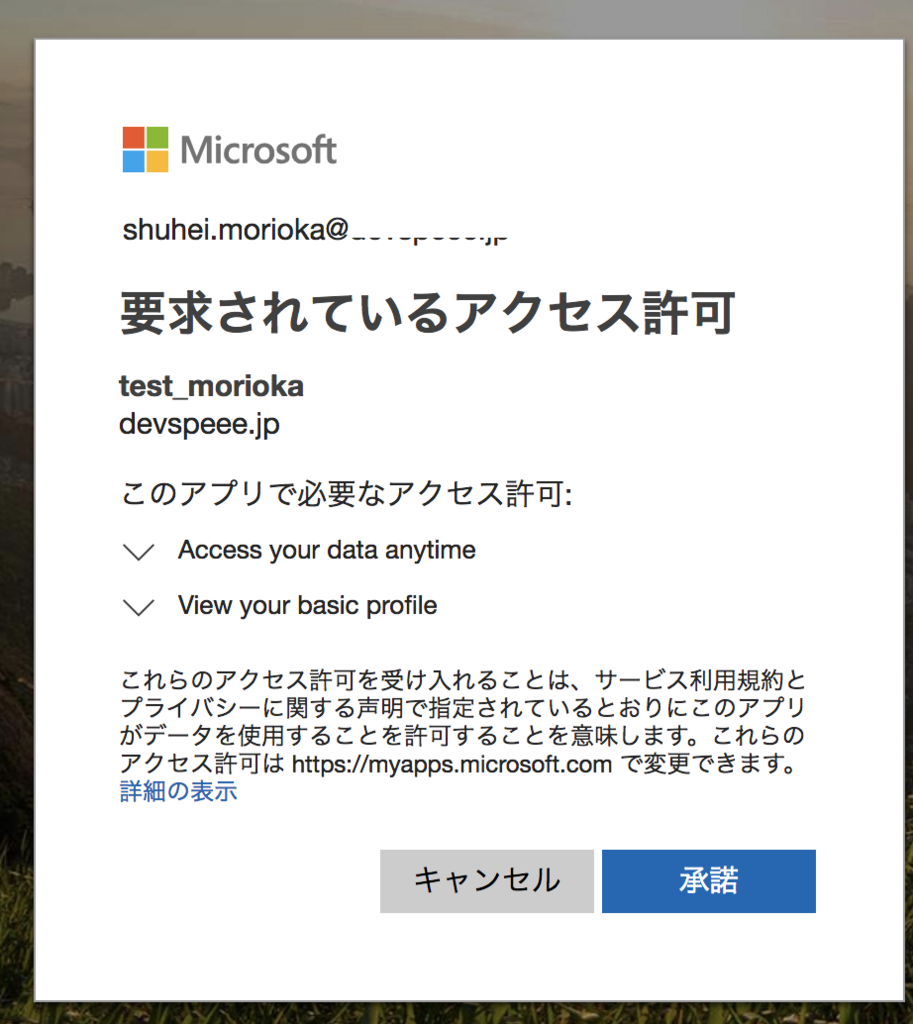

http://127.0.0.1:8080/test
にアクセスすると下記のページにredirectされる

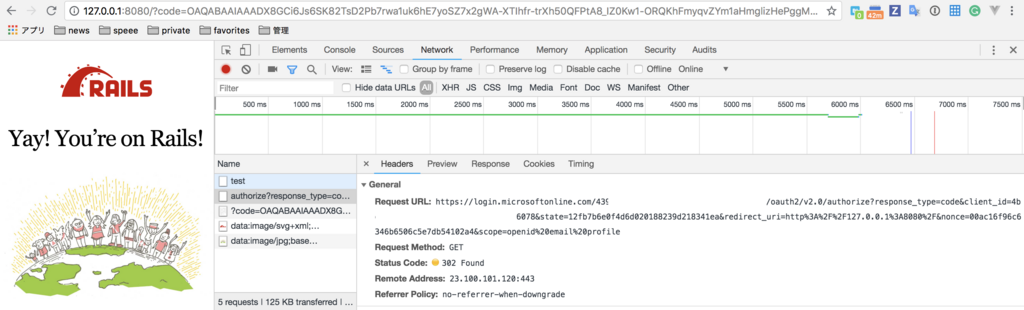

認証が終わるとこんな感じ
